Schmoyer's Lyre/Tuning Fork Dial

When Richard L. Schmoyer, designer of the well-known Sunquest sundial, died in 1997 at age 82, he left a drawing and description, dated 9 January 89, of a proposed large public sundial, which he called "Lyre and Tuning Fork Musical Theme Sundial." Apparently, the dial was never built.

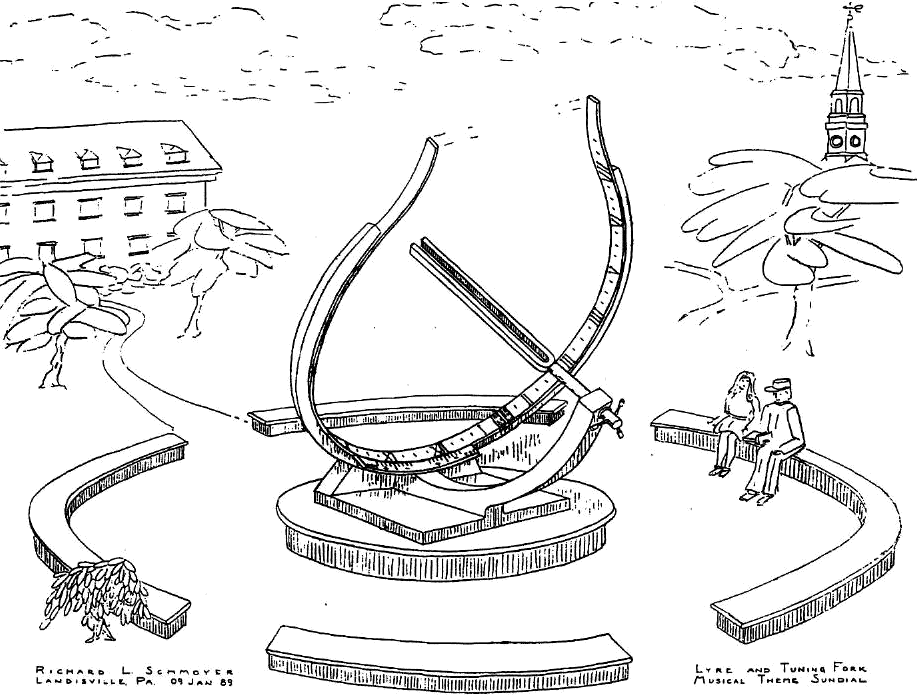

Richard Schmoyer's dial sketch:
(Click to enlarge)

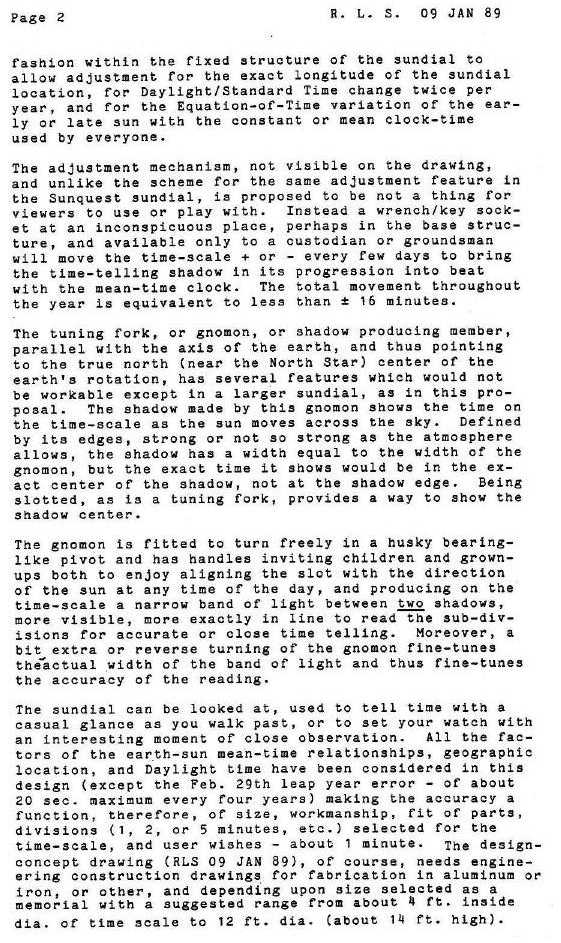

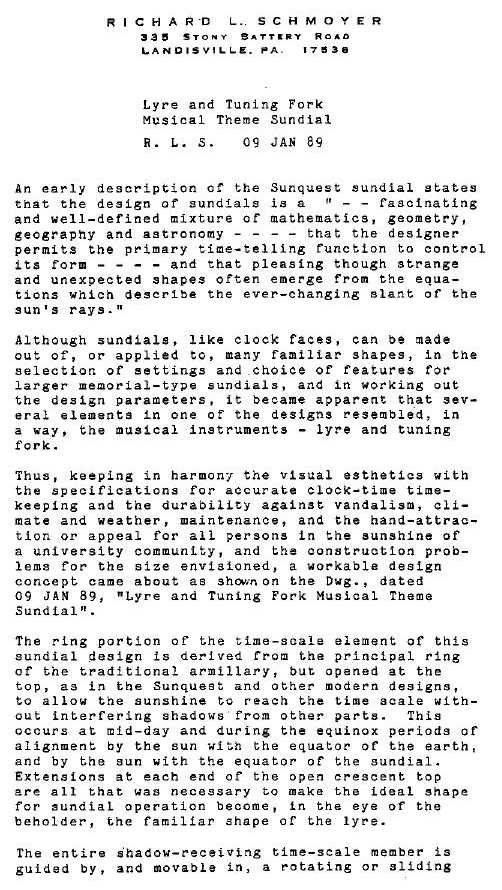

Text write-up (click to read!):
(Use your Back button to return to this page)
